Main Data
| ITEM | UNIT | LGD-2-750 | LGD-2-15 | LGD-2-2L |
Number of cavity | Cavity | 2 | 2 | 2 |
Theoretical Output | Pcs/h | 2500-2800 | 2000-2500 | 1800-2500 |
Max.container volume | L | 0.75 | 1.5 | 2 |
| Max.neck diameter | mm | 45 | 45 | 45 |
| Max.container diameter | mm | 75 | 95 | 115 |
Max.container height | mm | 260 | 330 | 330 |
Mould Thickness | mm | 210 | 210 | 210 |
Mould Stroke | mm | 100 | 130 | 130 |
Stretching Stroke | mm | 80 | 100 | 120 |
Power of Main Blower | KW | 30 | 30 | 30 |
Actual power consumption | KW | 10-15kw | 10-15kw | 12-18kw |
Working Pressure | Mpa | 0.8 | 0.8 | 0.8 |
Blowing pressure | Mpa | ≦3.5 | ≦3.5 | ≦3.5 |
Measurement of Main Blower | mm | 3000x1700x2000 | 3000x1700x2100 | 3000x17000x2000 |
Measurement of Elevator | mm | 1960x1460x2550 | 1960x1460x2550 | 1960x1460x2550 |
Weight of Main Blower | kg | 2000 | 2200 | 2500 |
Configuration Table of Automatic Bottle Blower
| Part name | Specifications | Place of Origin |
Shift servo motor | DELTA | Taiwan |

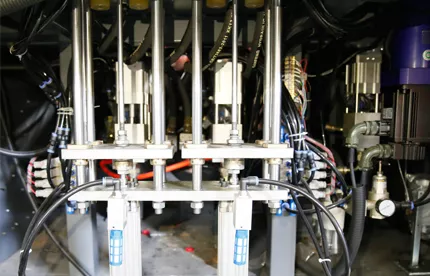

Clamping cylinder | SMC | Japan |
Stretching cylinder | SMC | Japan |
Manipulator | Mindman | Taiwan |
Overturn cylinder | SMC | Japan |
Blanking cylinder | SMC | Japan |
Bottle taking forward and backward cylinder | SMC | Japan |
Lif cylinder for taking blank and bottle | SMC | Japan |
Operating valve | SMC | Japan |
Blowing valve | Parker | U.S.A |
Guide | HIWIN | Taiwan |
PLC control | DELTA | Taiwan |
Screen | DELTA | Taiwan |
Circuit breaker | SCHNEIDER | France |
Relay | OMRON | Japan |
Photoelectric switch | OMRON | Japan |
Heater | Self-rotating infrared heating is built into the host | |
